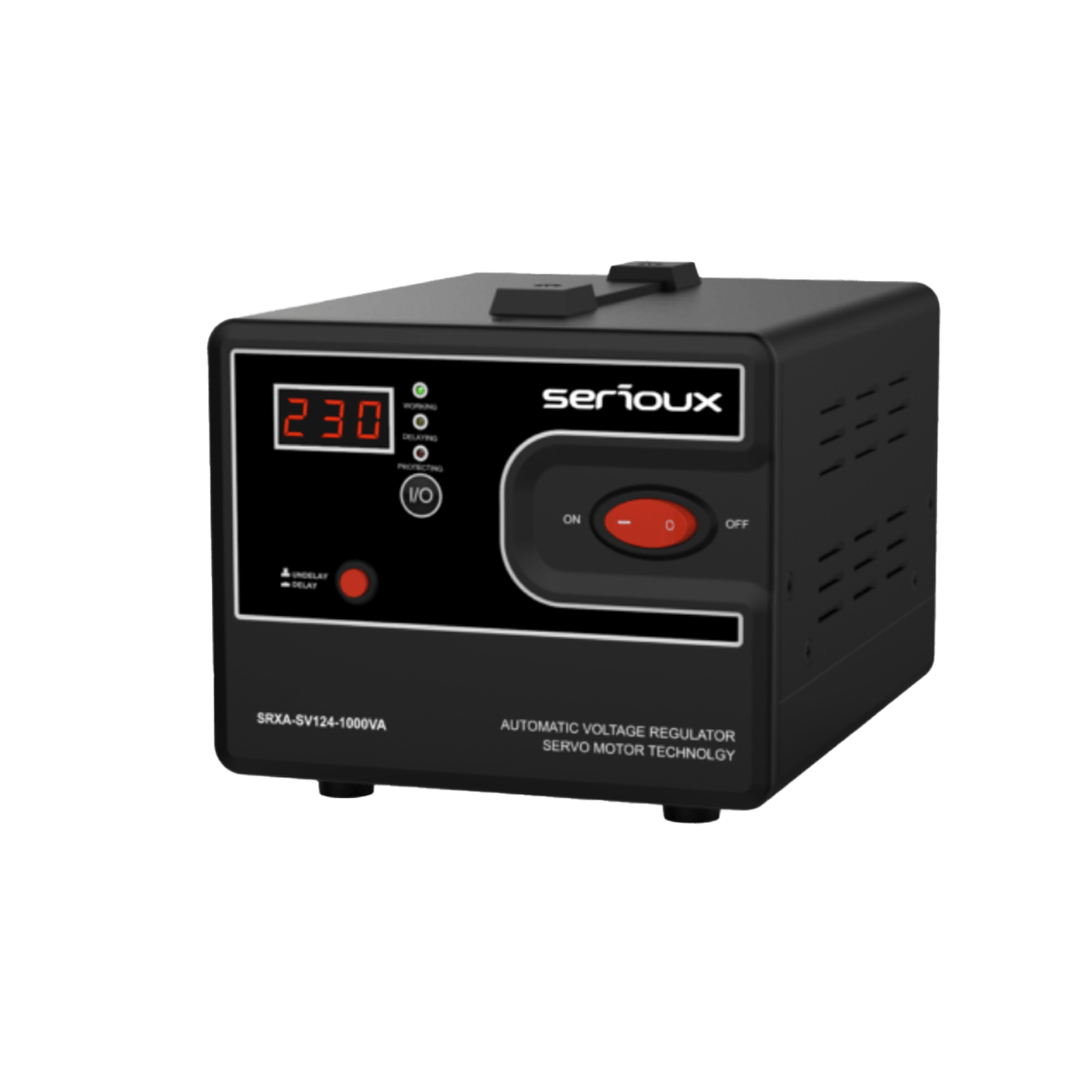

Model SRXA-SV124-1000VA
Power 1000VA/600W
Type Servo Motor

Transformer Toroidal transformer+ Servo motor
Input voltage range 150V ~ 260V
Input frequency range 45Hz ~ 65Hz

Output voltage 230V
Output frequency synchronized with input frequency
Output Accuracy ±3%
Socket type 1x Schuko
Distortions <3%
Efficiency >97%
Delay time 6/180 seconds selectable

Protection High voltage, low voltage, overheat, overcurrent, short circuit
IP class IP20
Noise level <65dB (at 1m distance)
Operating humidity Max 95%, non-condensing
Operating temperature -20°C ~ 40°C
